Description

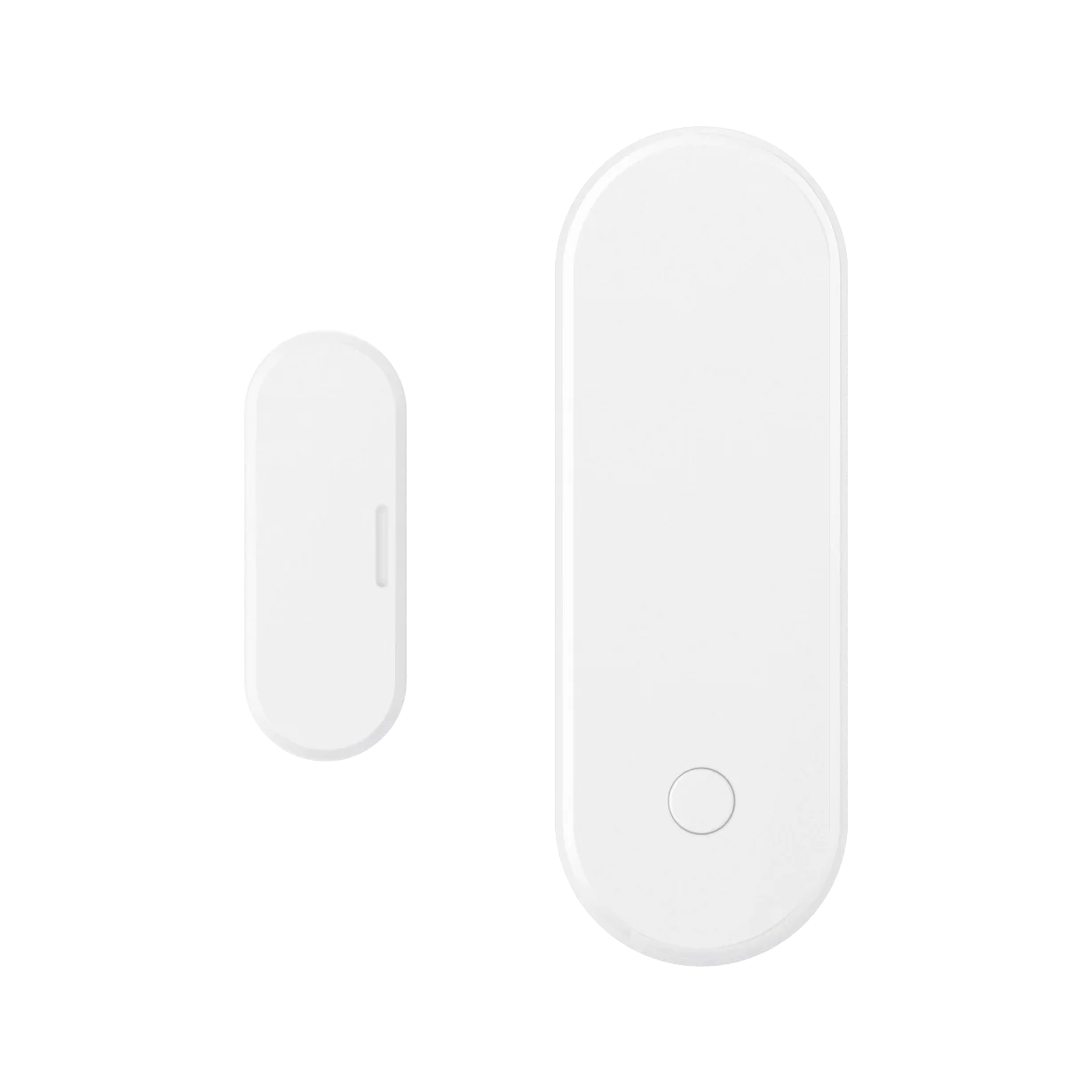

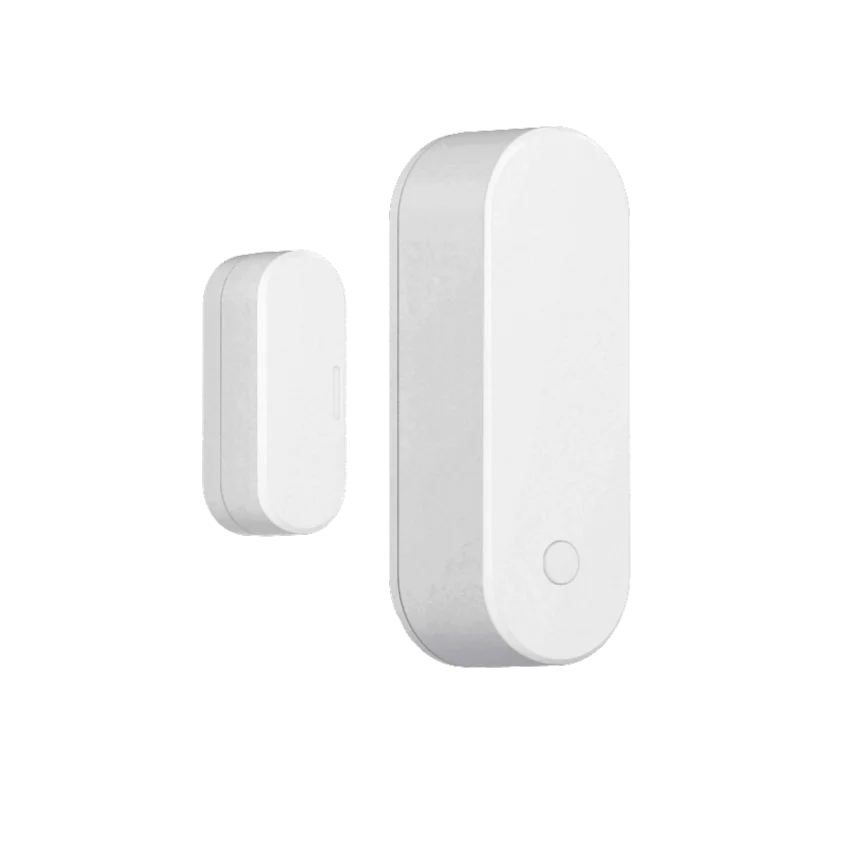

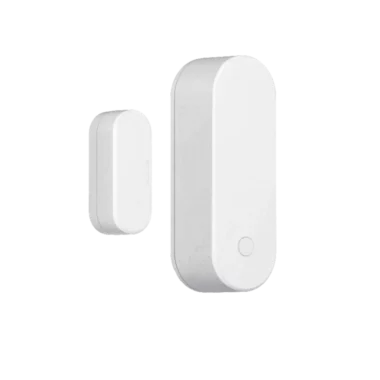

The S03D Bluetooth Door Sensor, is a BLE technology based wireless sensor to detects when doors open or close for powerful visibility.
With precise sensors and an easy-to-install design, the S03D Door Sensor provides powerful visibility and improved security to both roll-up and swing (i.e., hinge) doors without any complicated wiring or cables. It also delivers enhanced visibility of trailer and container operations and improved cargo security, which enables fleet operators to know if the cargo area is being accessed as scheduled and react quickly to unexpected openings.
Thanks to its outstanding 2600mAh large battery, the door monitor could run for 8+ years to eliminate the maintenance costs.
Specification
| Dimension (mm) | 77.5*27.0*24.7 (Body), 40.0*16.0*15.0 (Magnet) |
| Weight | 30g |
| Material | PC |
| IP Rated | IPX4 |
| Color | White |
| Installation | 3M tape/Bracket |
| Bluetooth | BLE 5.0 |
| Sensor type | Magnetic sensor, accelerometer |
| Detection range | 20mm |
| Battery | 2600mAh, replaceable |
| Operating temperature | -20°C / +60°C |
| Lifespan (default settings) | 8 years |
| Certification | FCC/CE/RoHS/REACH |
