Description

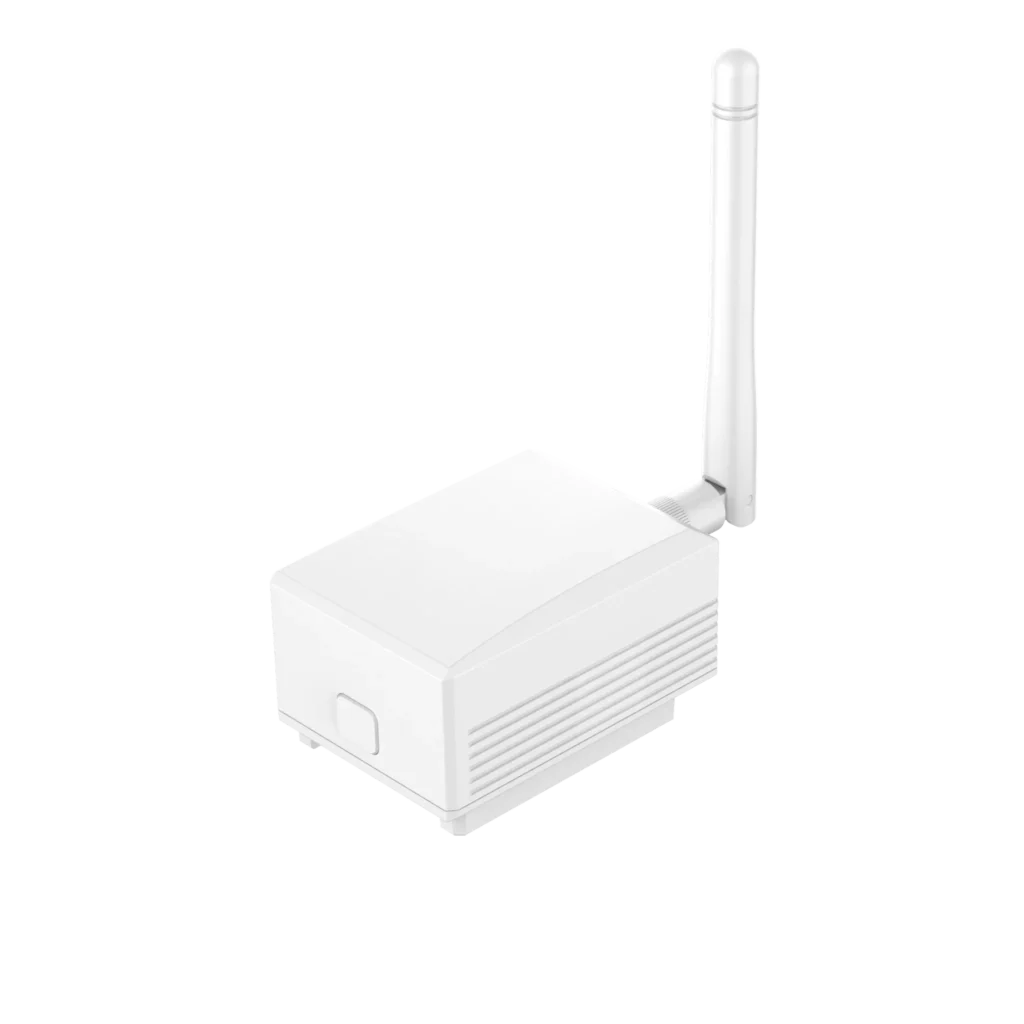

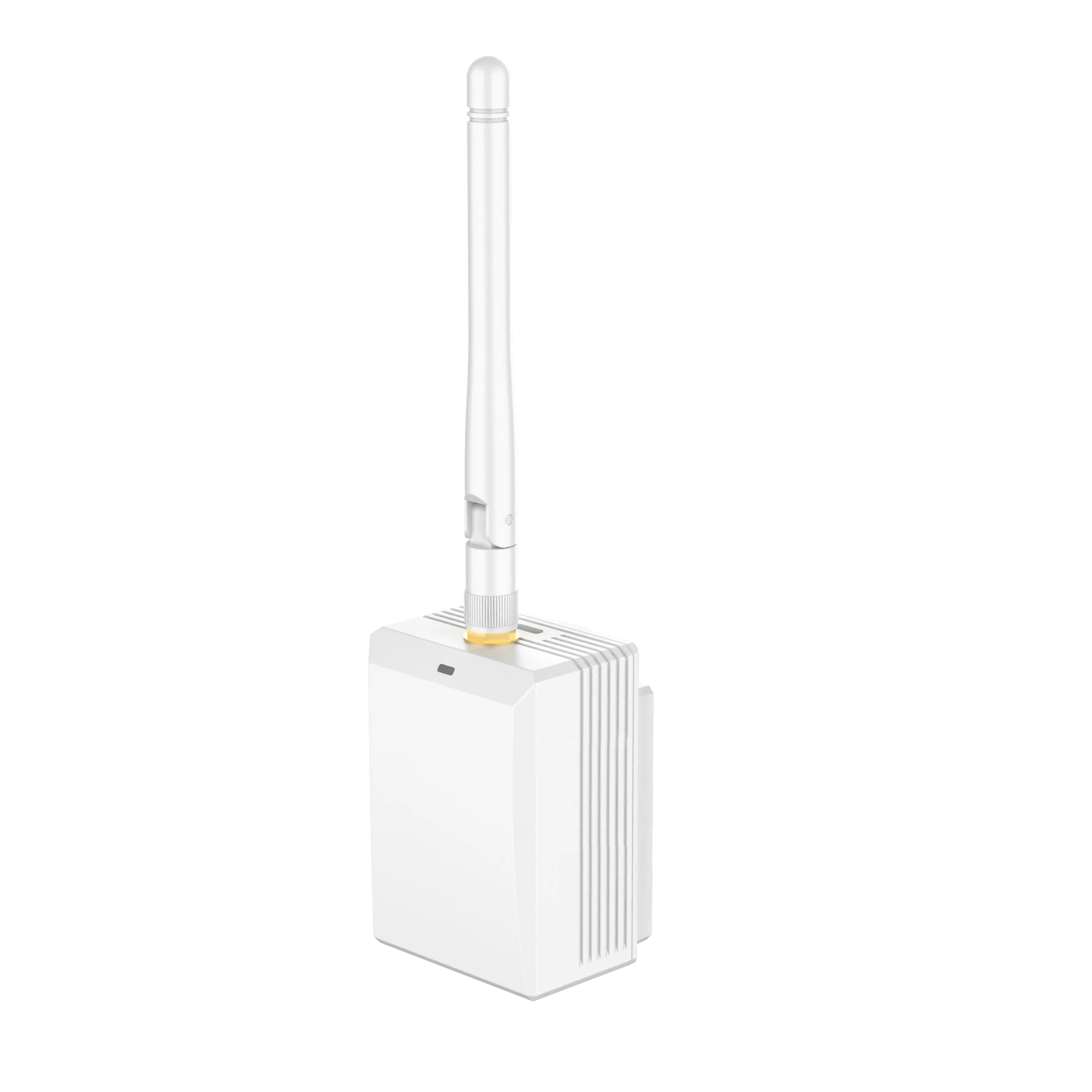

MKGW6 single channel LoRa gateway is a cost-effective gateway designed for efficiency and reliability. Boasting LoRaWAN full-frequency band coverage, this gateway guarantees wide compatibility and versatility. Its straightforward plug-in design allows for quick and easy installation without complex setup. Furthermore, the external antenna enhances communication performance, ensuring stable and reliable data transmission. Ideal for a range of LoRa networking require-ments, the MKGW6 is a great solution for warehouses, factories, hospitals, smart offices, and more.
Specification
| LoRa Chipset | Semtech SX1262 |
| MCU | ESP32 |
| Wi-Fi frequencies | 2.4GHz |
| LoRaWAN Regions | EU868/US915/AU915/AS923-1/AS923-2/AS923-3/AS923-4RU864/IN865/KR920/AS923-1/AS923-2/AS923-3/AS923-4 |
| LoRa Channel | Single Channel |
| LoRa TX Power | Max. 21dBm |
| Wireless Network Supply | LoRaWAN, Wi-Fi 2.4 GHz |
| Mirco-USB | DC 5V/1A |

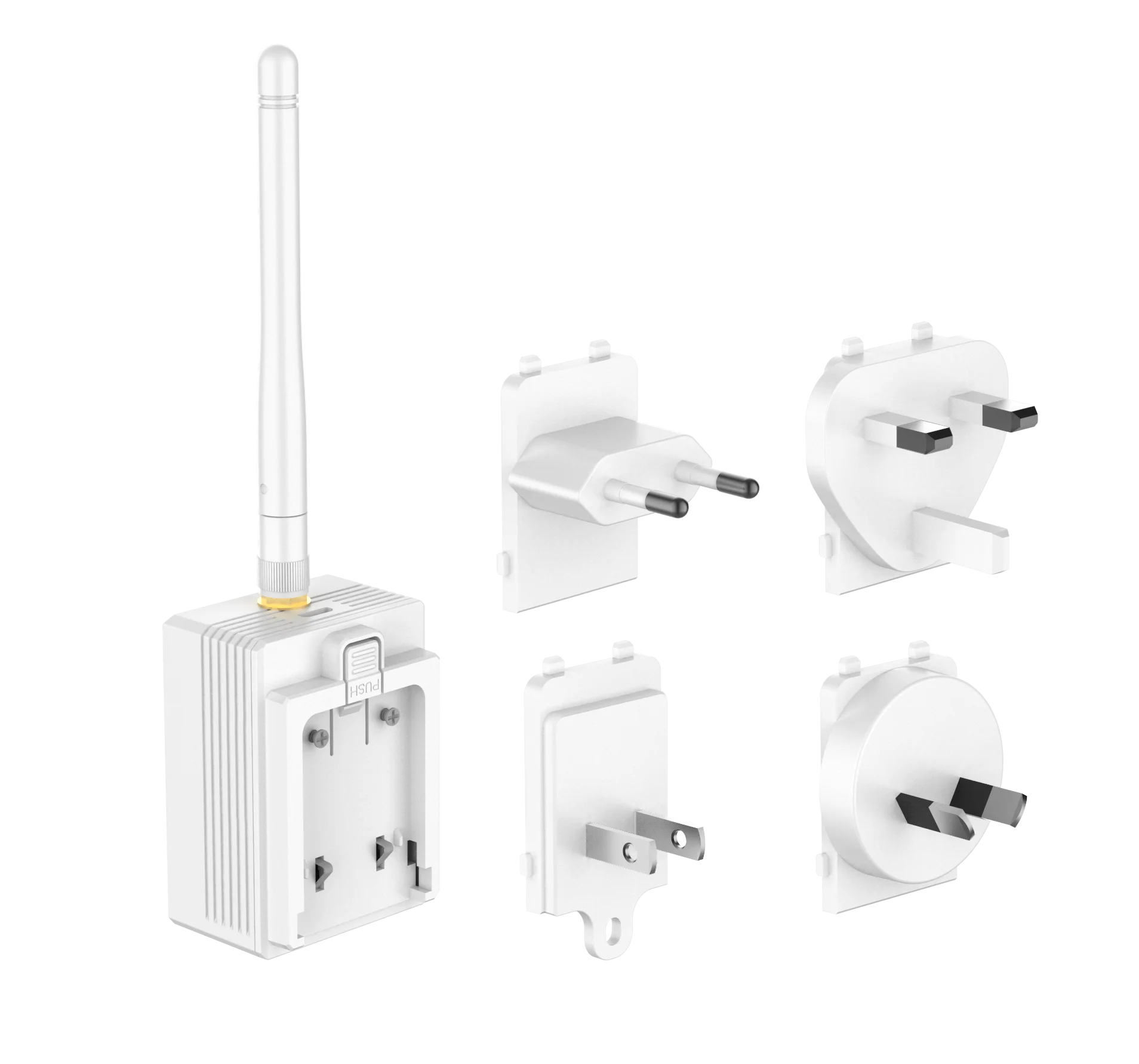

| Socket Power Supply | Direct power supply from socket |
| LoRa Protocol | Semtech UDP Packet forwarder |
| Configuration | APP Tool |
| LoRa Wireless Coverage | Up to 4 km (in urban open space) |
| Dimensions (mm) | 61*35*43.4 (Not include external LoRa antenna) |
| Operating Temperature | -40℃~+85℃ |
| Operating Humidity | 10%~90% (No-condensing) |
| LoRa antenna | 1.6dBi External antenna |
