Description

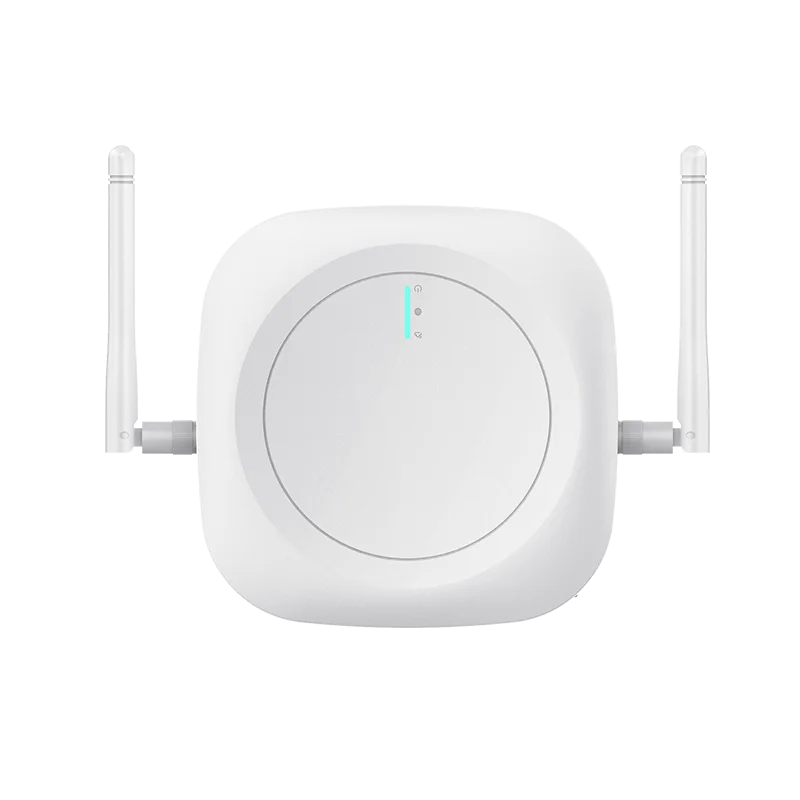

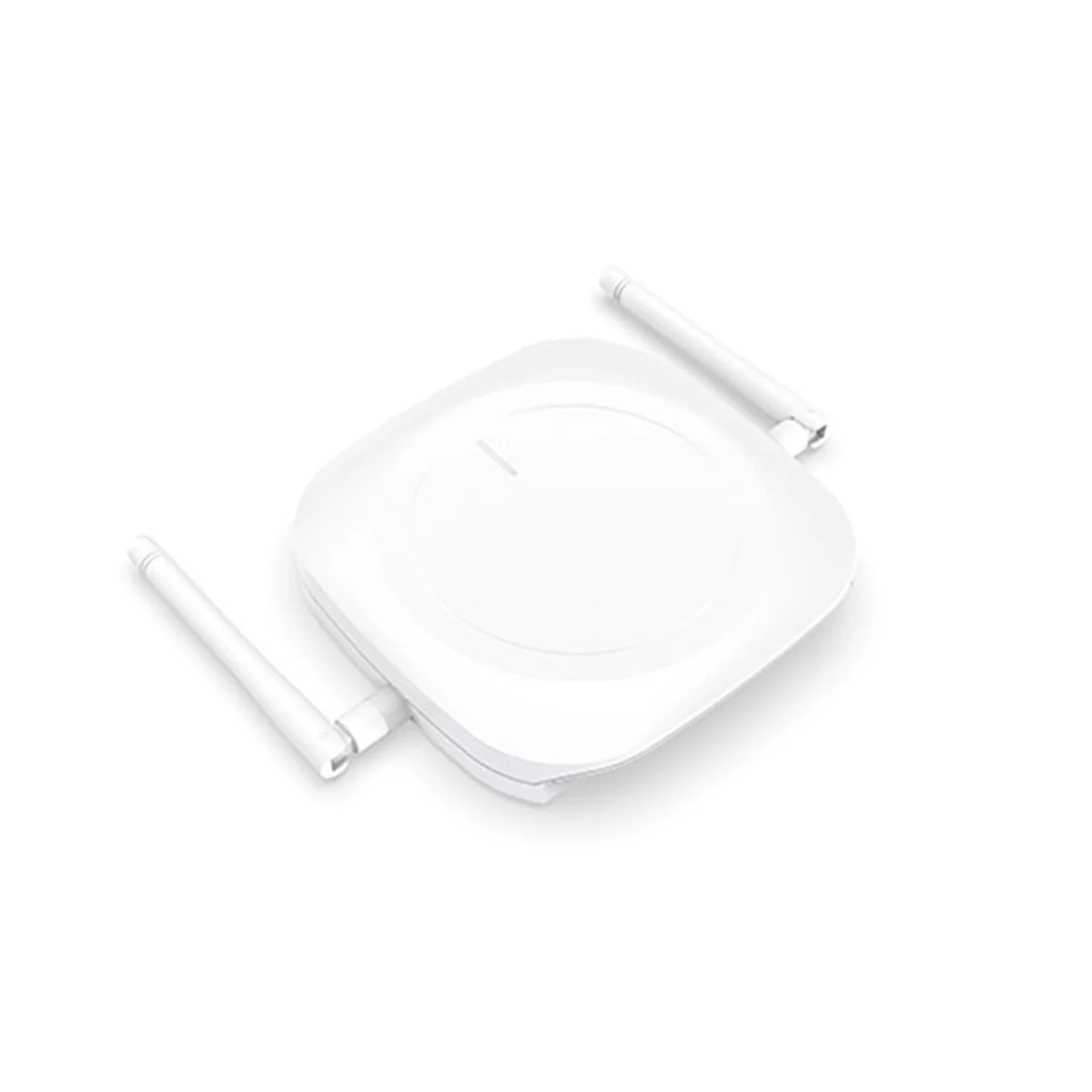

MKGW1-BW Pro is a multi-wireless gateway with Bluetooth LE (BLE) and Wi-Fi. It is based on the innovative integration of Nordic Semiconductor nRF52833 and MediaTek MT7688/MT7628 platform. This enables the MKGW1-BW Pro gateway to support Bluetooth 5 features like Coded PHY (Long range), 2M PHY as well as IEEE 802.11b/g/n 2.4Ghz Wi-Fi and 10/100 FE PHY Ethernet. MKGW1-BW Pro captures multiple BLE devices information (such as Apple iBeacon, Google Eddystone and MOKO BLE sensor data) and sends to Internet MQTT/HTTP server or local TCP/UDP server.
Specification
| Dimension (mm) | 120 x 120 x 22.5 |
| Weight | 136g |
| Color | White |
| Installation | Horizontal, Hanging on wall or ceiling |
| Protection rating | IP20, UL94 V0 |
| Button | 1 Power Button and 1 Reset Button |
| LED | 3 x Intelligent RGB LED |
| Power supply port | DC port (4.2 x 1.3 mm)/Micro USB port/PoE port |
| USB 2.0 host port | Connecting a USB flash drive |
| ETH port (PoE port) | 1 port 10M/100M fast Ethernet PHY |
| Micro USB | 5V/1A |
| DC port | 9 – 15V/1A |
| PoE | IEEE 802.3af |
| Bluetooth antenna | 1.75 dBi external omnidirectional rod antenna; 4.2dBi gain and 59% efficiency internel FPC antenna (optional) |
| Wi-Fi antenna | 1.75 dBi external omnidirectional rod antenna; 5dBi gain and 68% efficiency internal FPC antenna (optional) |
| Wi-Fi range | Up to 180m in open area |
