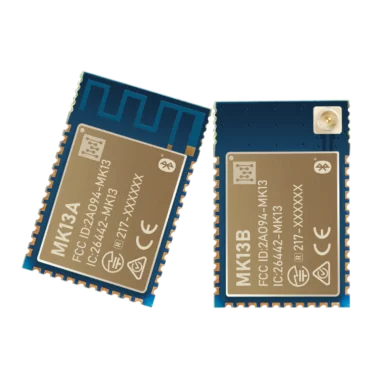

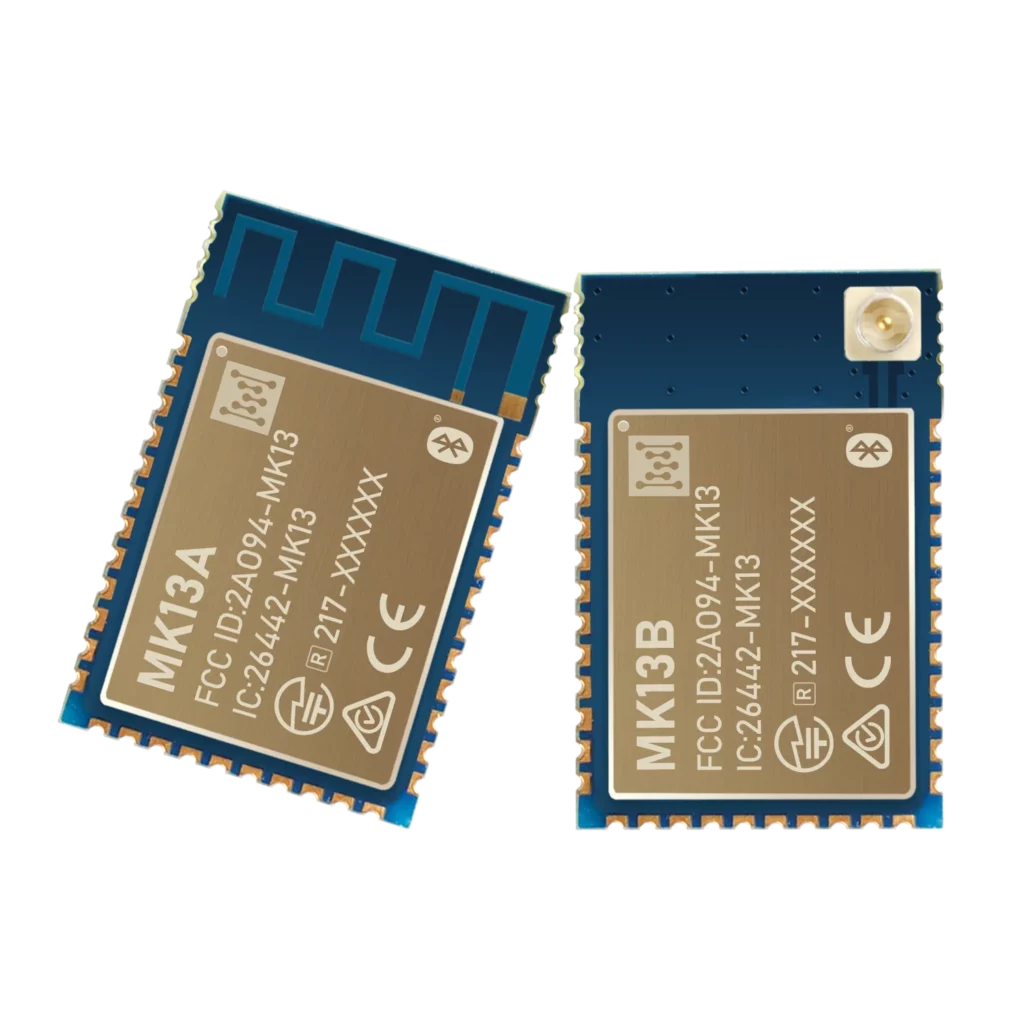

MK13 nRF5340 Module

$12.00

Features:

  • 512kB+64kB RAM and 1MB+256KB Flash Memory
  • Dual-core Arm® Cortex®-M33
  • Nordic® Semiconductor nRF5340 SoC Solution
  • A highly flexible multiprotocol SoC that is best suited for ANT+, BLE, Thread (802.15.4) ultra-low-power wireless applications, and Zigbee
  • Functions at a wide extendable range of operating temperature
  • Has enough memory to support light to intense tasks
  • Supports multiple forms of Bluetooth connectivity
  • Functions through the Nordic Semiconductor nRF5340 dual-core Bluetooth 5.2 SoC
SKU: N/A Categories: , Tag:

Description

The MK13 series is a highly flexible and powerful Bluetooth® 5.2 module that is based on the Nordic® Semiconductor nRF5340. It is the world’s first wireless SOC that comes with two Arm® Cortex®-M33 processors.

The module combines two flexible processors, an operating temperature with a ceiling of 105 °C, and an advanced set of features. These aspects make it the ideal choice for professional lighting, LE audio and advanced wearable, among other IoT applications.

Specification

Dimension 21*13.8*2.3mm（with shield）
Flash/RAM 1MB/512KB
Interface SPI, TWI, UART, PDM, PWM, QDEC
Power Supply 1.7-5.5 V
Operating Temperature -40 to +85°C
BLE5.0/5.1 Specification Direction Finding, 2Mbps, CSA#2, Advertising Extensions, Long Range
Cover Metal shielding with marking
BLE Standard BLE 5.2
46GPIOs 46

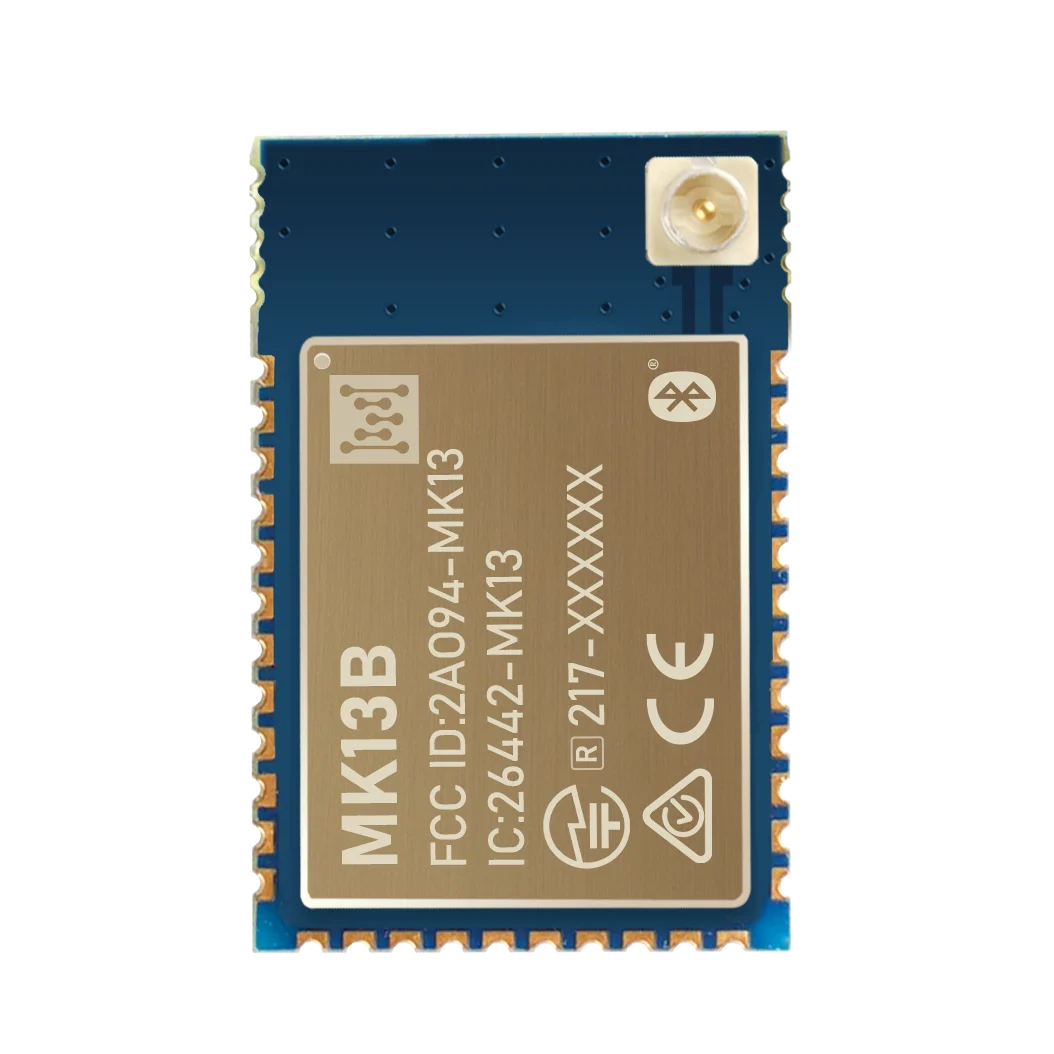

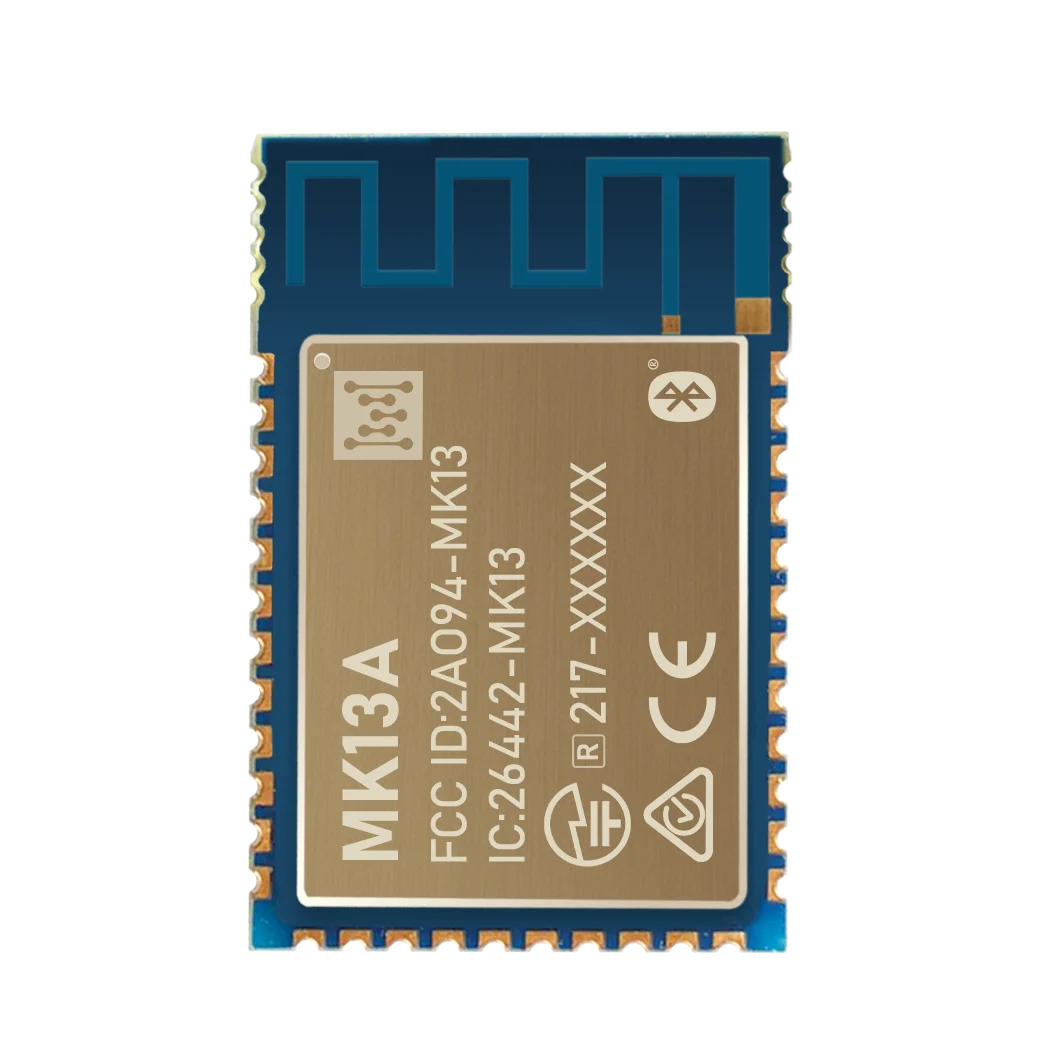

Antenna Type PCB antenna/u.FL Connector
32.768K Crystal Oscillator Built inside
Pad package Land Grid Array (LGA) +Plated Half-hole
Other Feature Thread, Zigbee
