Description

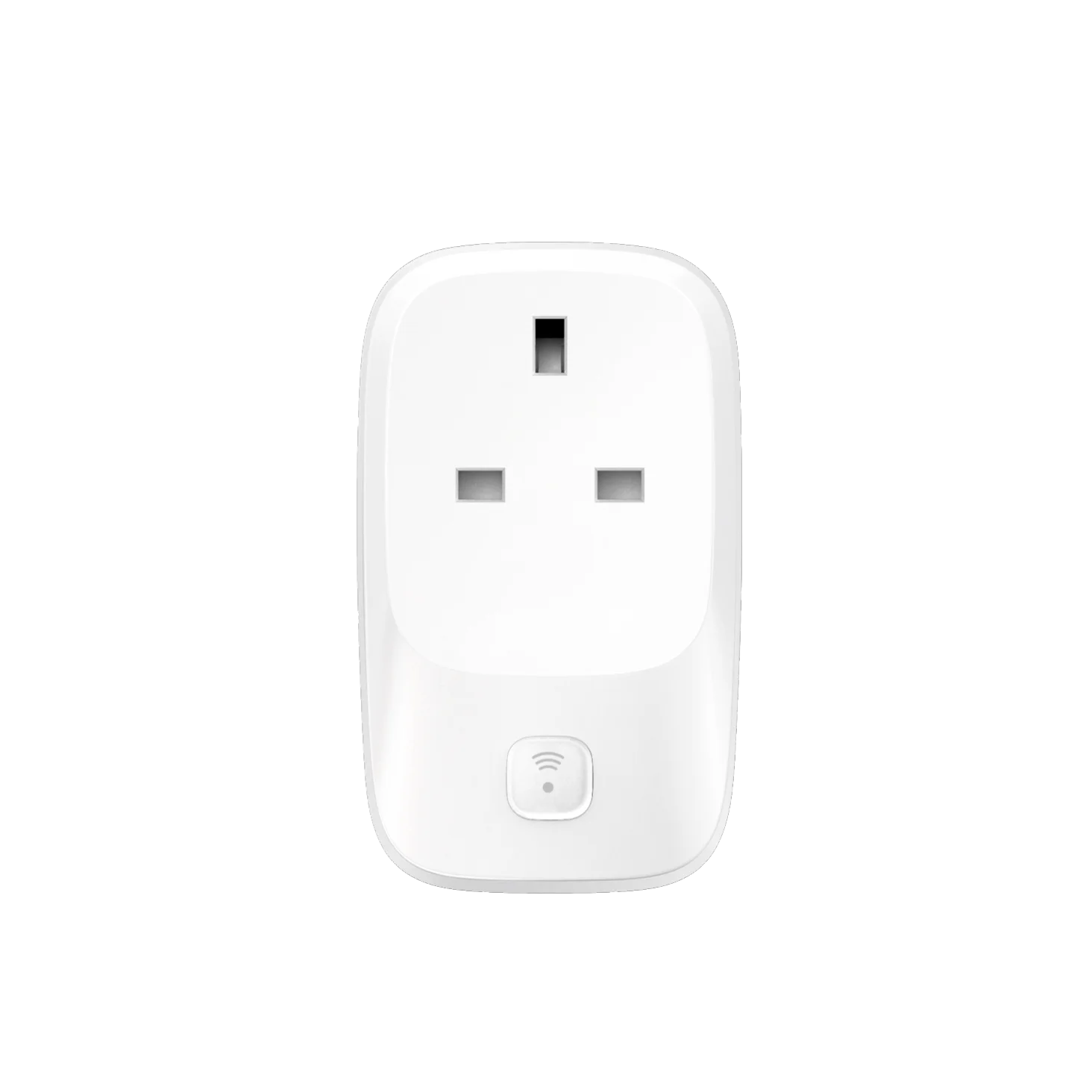

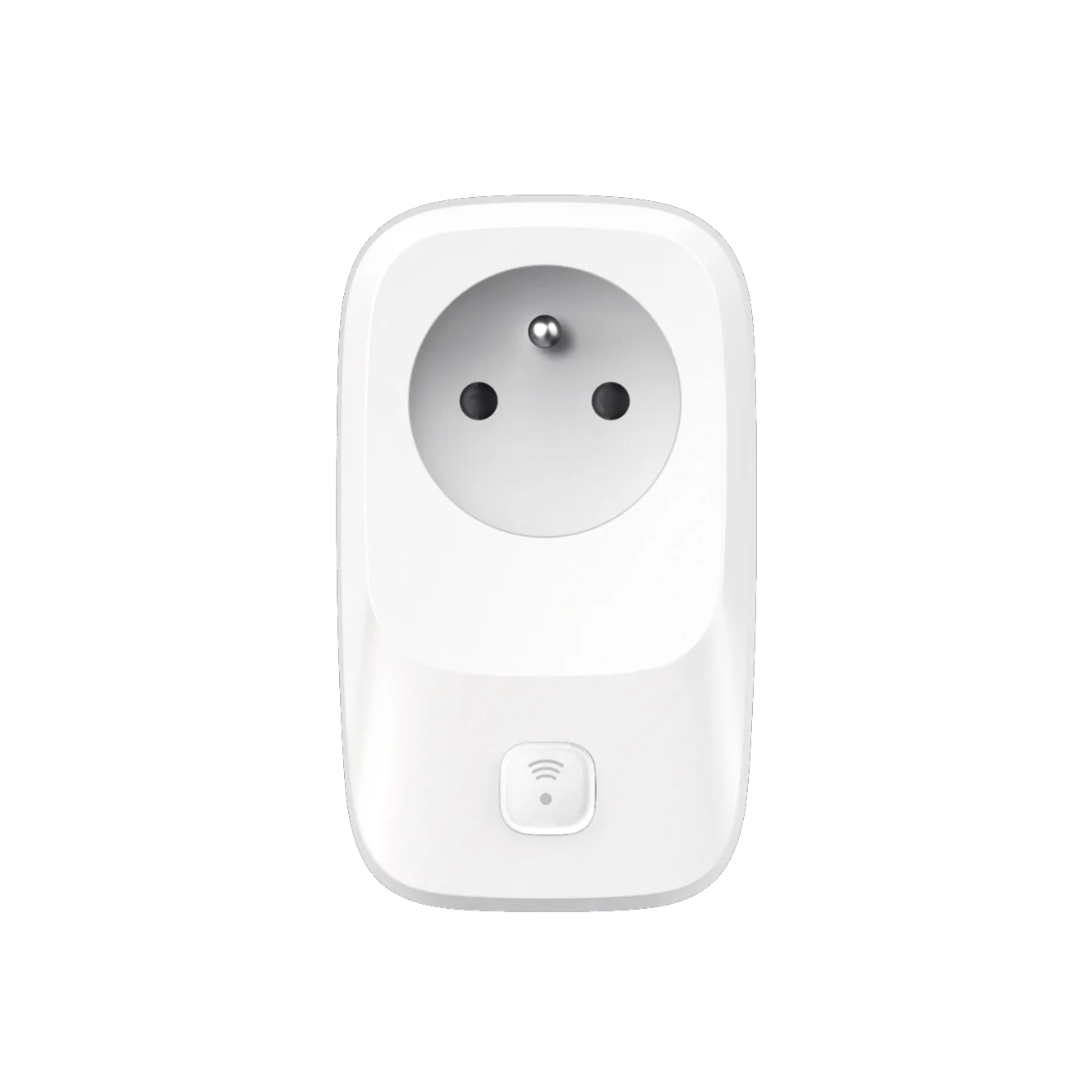

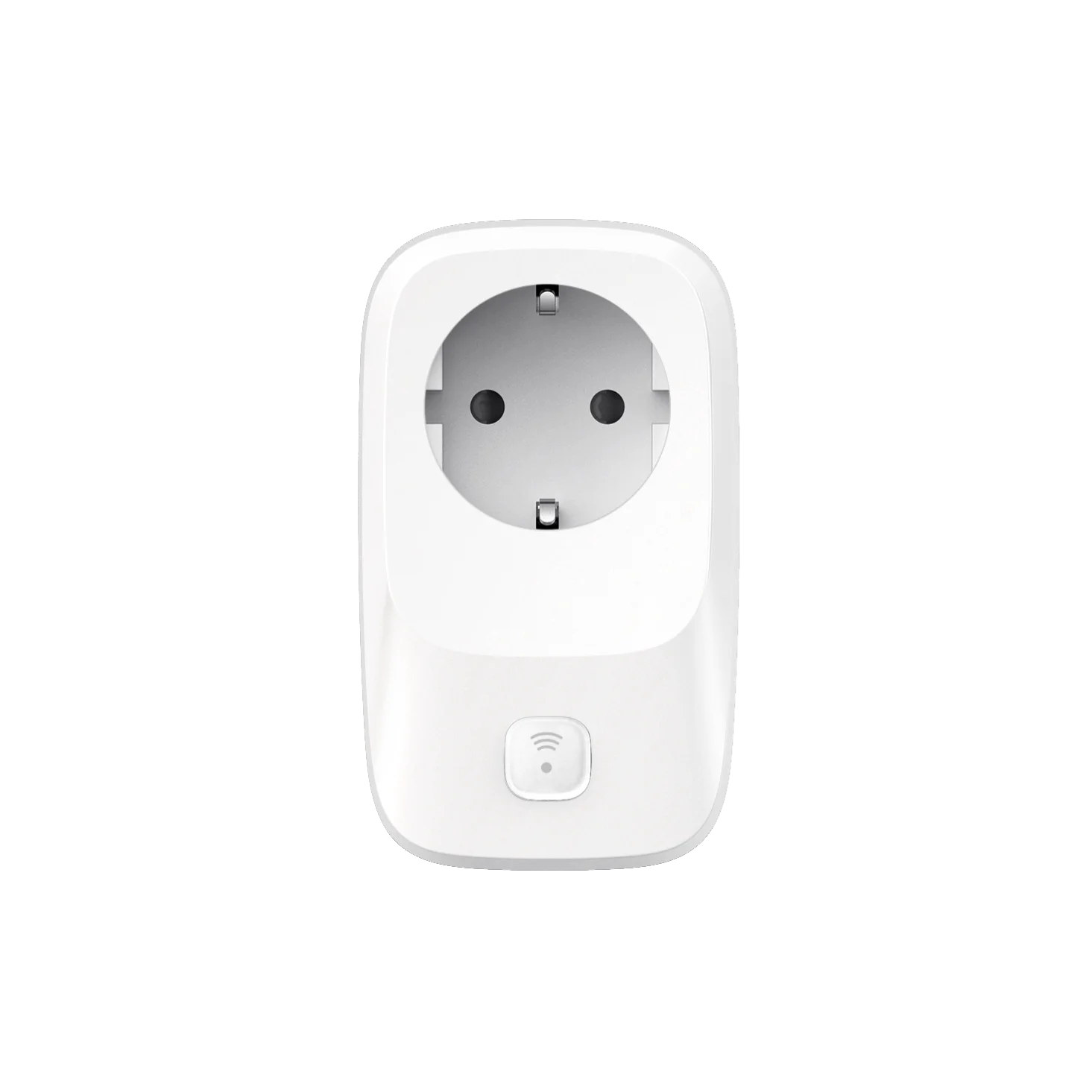

The MK107D Pro BLE Plug Gateway is able to relay data between Bluetooth beacons and the cloud server. It provides a low-cost method to transmit the information of beacons via your Wi-Fi network to the server. It realizes a simple and effective way to monitor your beacon and sensors for centralized asset tracking, real-time status monitoring, and indoor location services.
Specification
| BLE Module/Chip | ESP32-C3-MINI |
| Scan range in open space | 150m: BLE 4.2/BLE5.0(1M PHY) |
| Scan rate (BLE packets/second) | 228 |
| Wi-Fi Bandwidth | 2.4GHz&5GHz |
| Power supply | 100-240VAC, 50/60Hz |
| Output capacity | US type: 15A; UK type: 13A; EU/FR type: 16A |
| Material | ABS + PC |
| Color | White |
| Dimension | 104mm*61mm*34.5mm |
| Operating temperature | 0 ºC~ 40 ºC |
| Operating humidity | 0%～95% (No condensation) |
| Communication Protocol | MQTT V3.1.1 |
| Encryption | TCP/SSL |
| Data format | JSON |
| Button | 1* reset button |
| Security | Personal&Enter-prise(802.1X) |
