Description

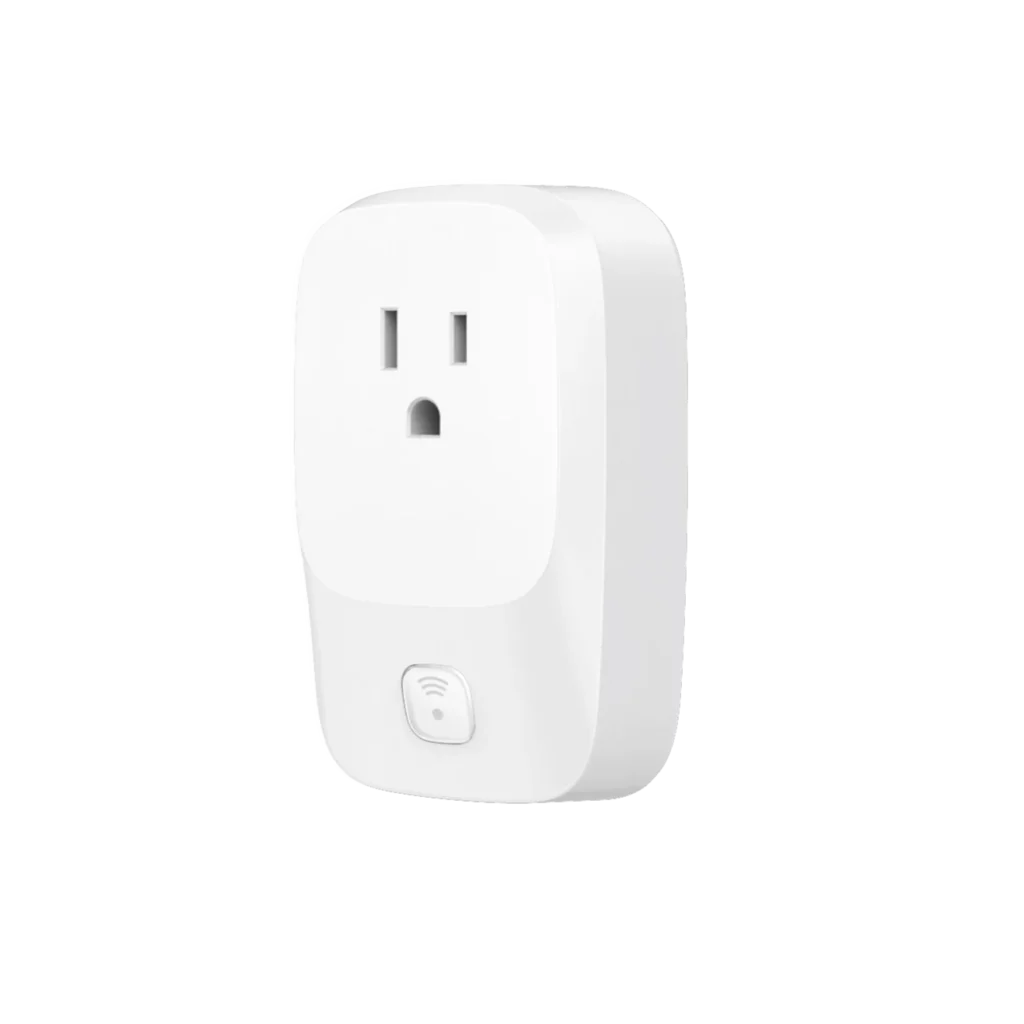

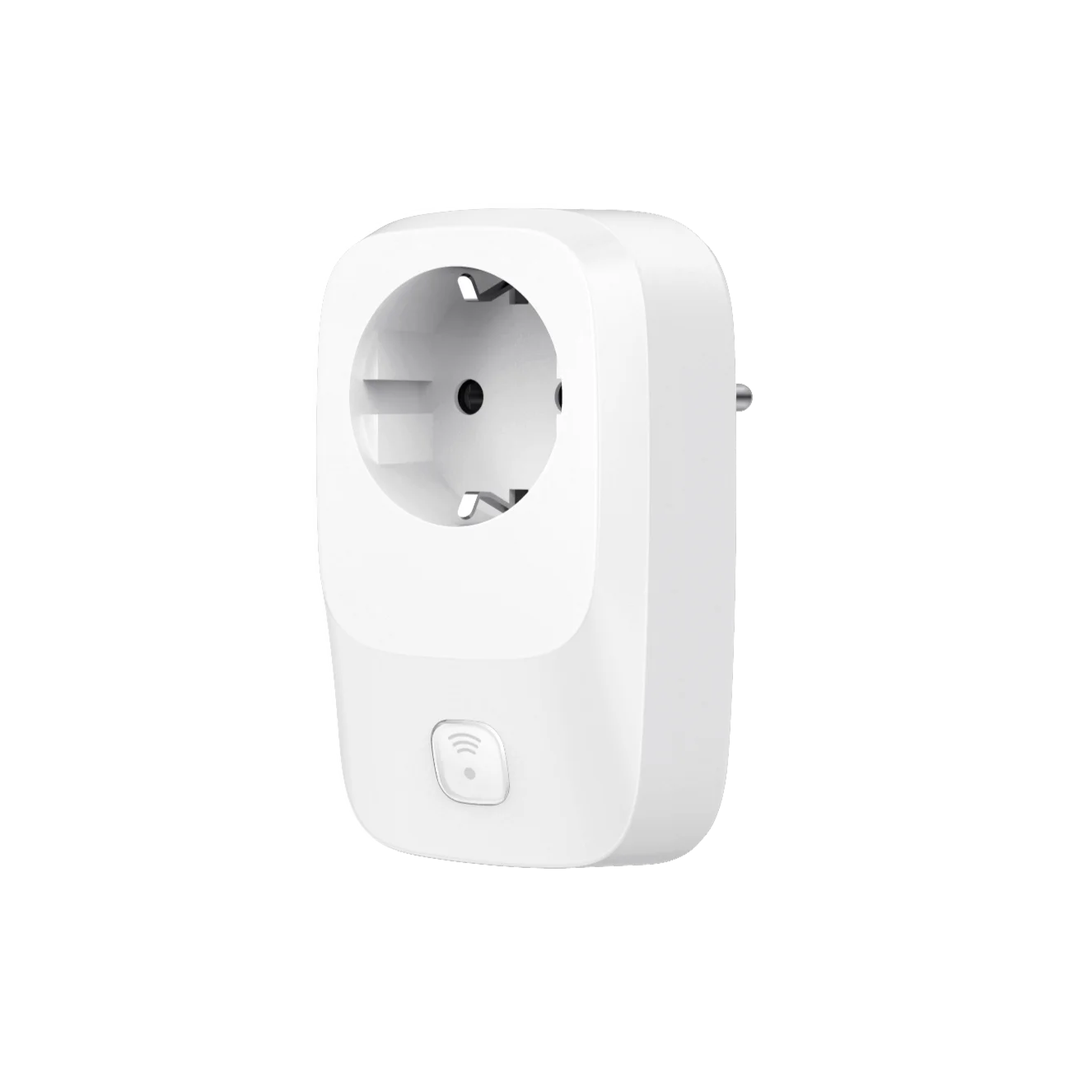

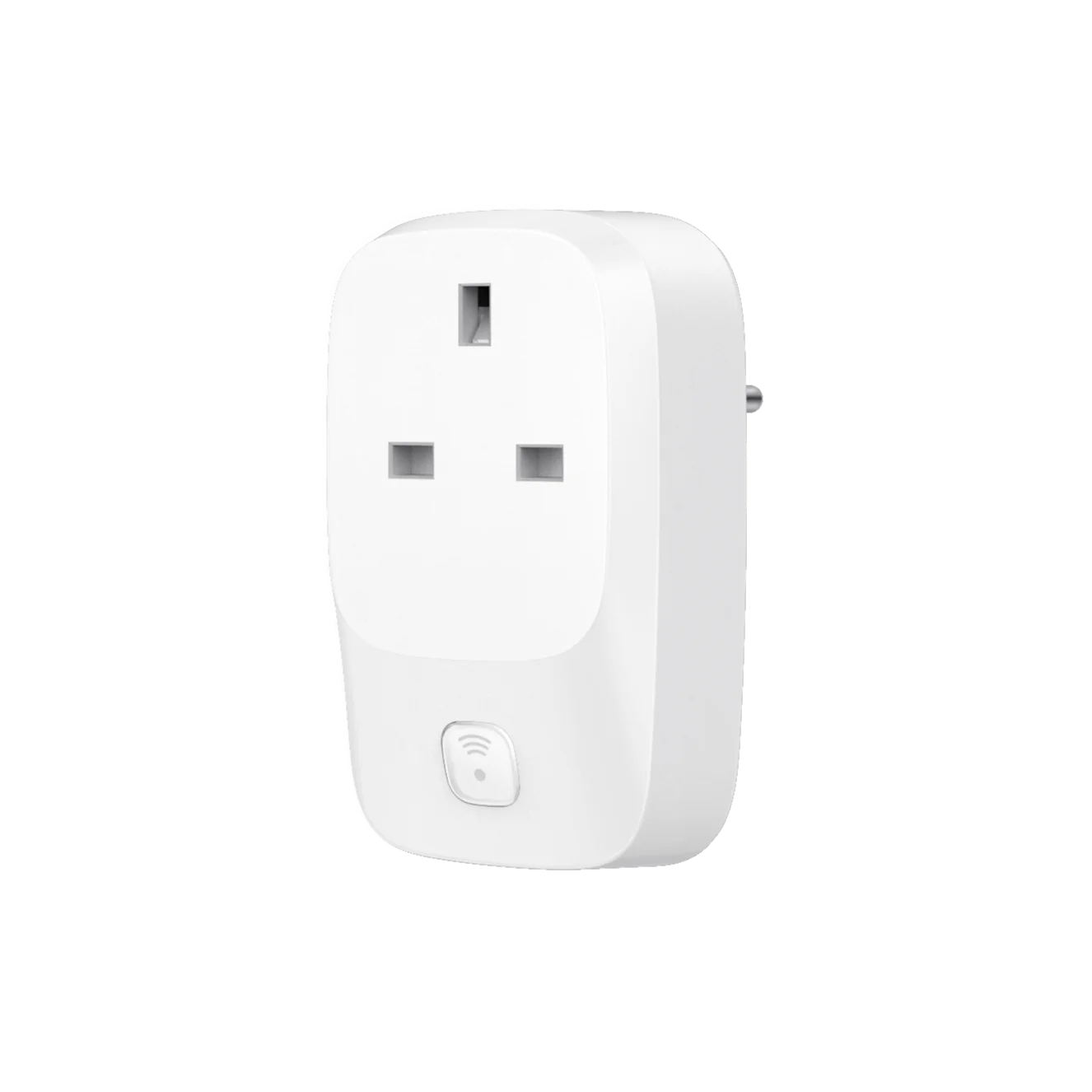

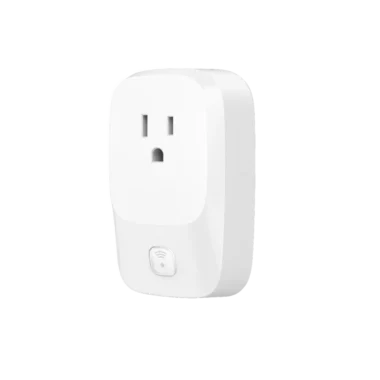

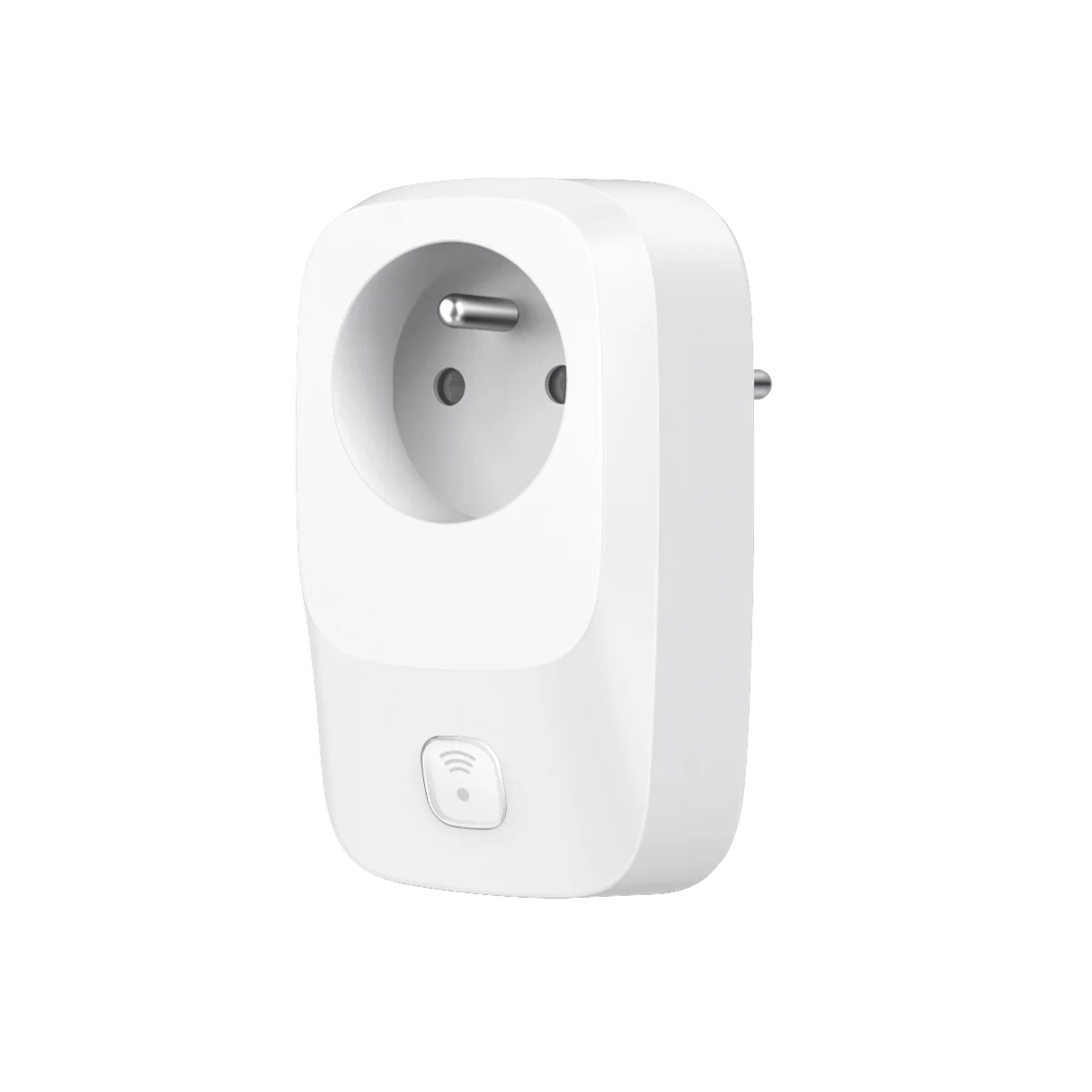

The MK107 series, a Bluetooth gateway plug, efficiently scans and collects advertising data from nearby beacons via Bluetooth. It then seamlessly transmits the Bluetooth data packets to your server over WiFi, facilitating cost-effective indoor positioning services, centralized asset tracking, and real-time status monitoring.
Specification
| Wireless | WIFI & BLE |
| Plug type | US/UK/EU/FR |
| Power supply | 100-240VAC, 50/60Hz |
| Output capacity | US type: 15A, UK type: 13A, EU/FR type: 16A |
| Color | White |
| Dimension (mm) | 104*61*34.5 |
| Operating temperature | 0 ºC~ 40 ºC |
| Certification | UL/FCC/CE/UKCA/Rohs |
| Security | Personal&Enter-prise(802.1X) |
| Module/chip | Nordic nRF52833 |
| Material | ABS + PC |
| Scan range in open space (meters) | BLE 4.2: 150 BLE5.0(1M PHY): 150 |
| Scan rate (BLE packets/second) | 260 |
