Description

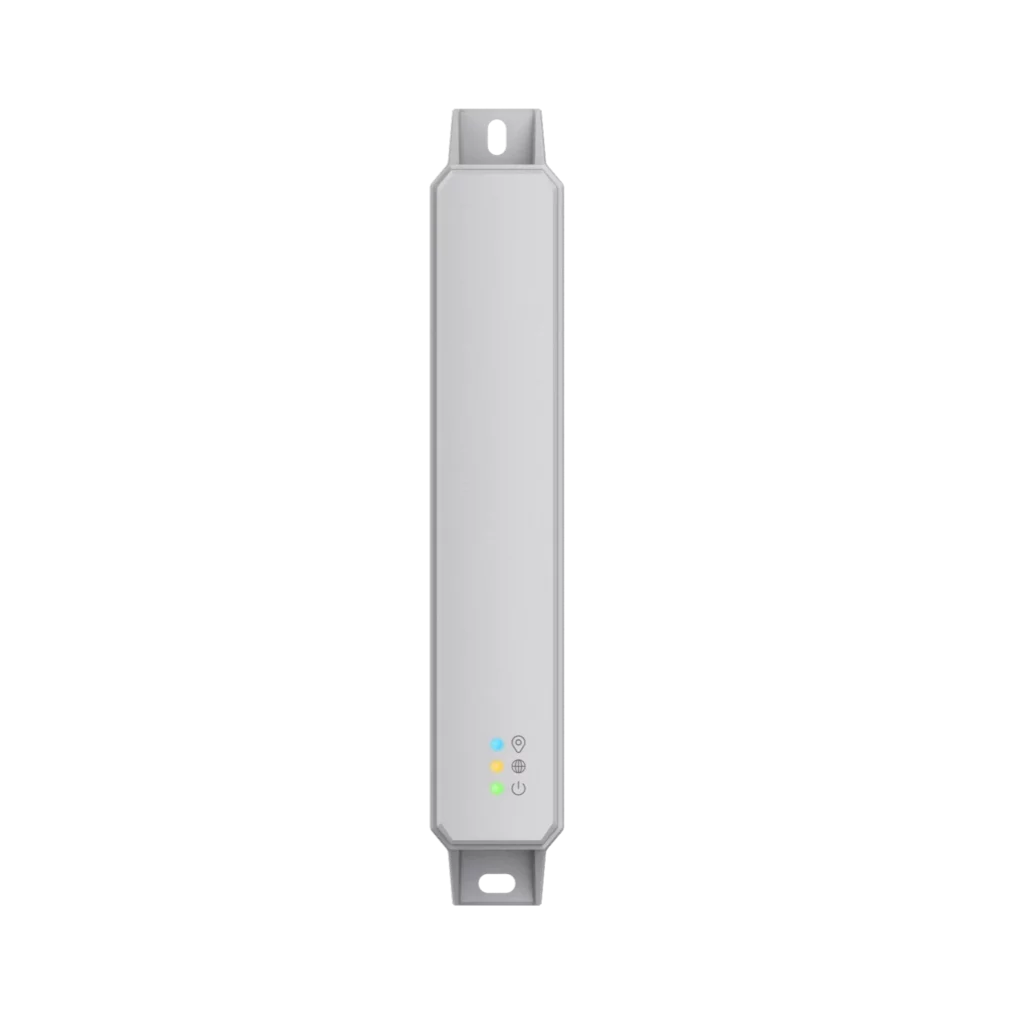

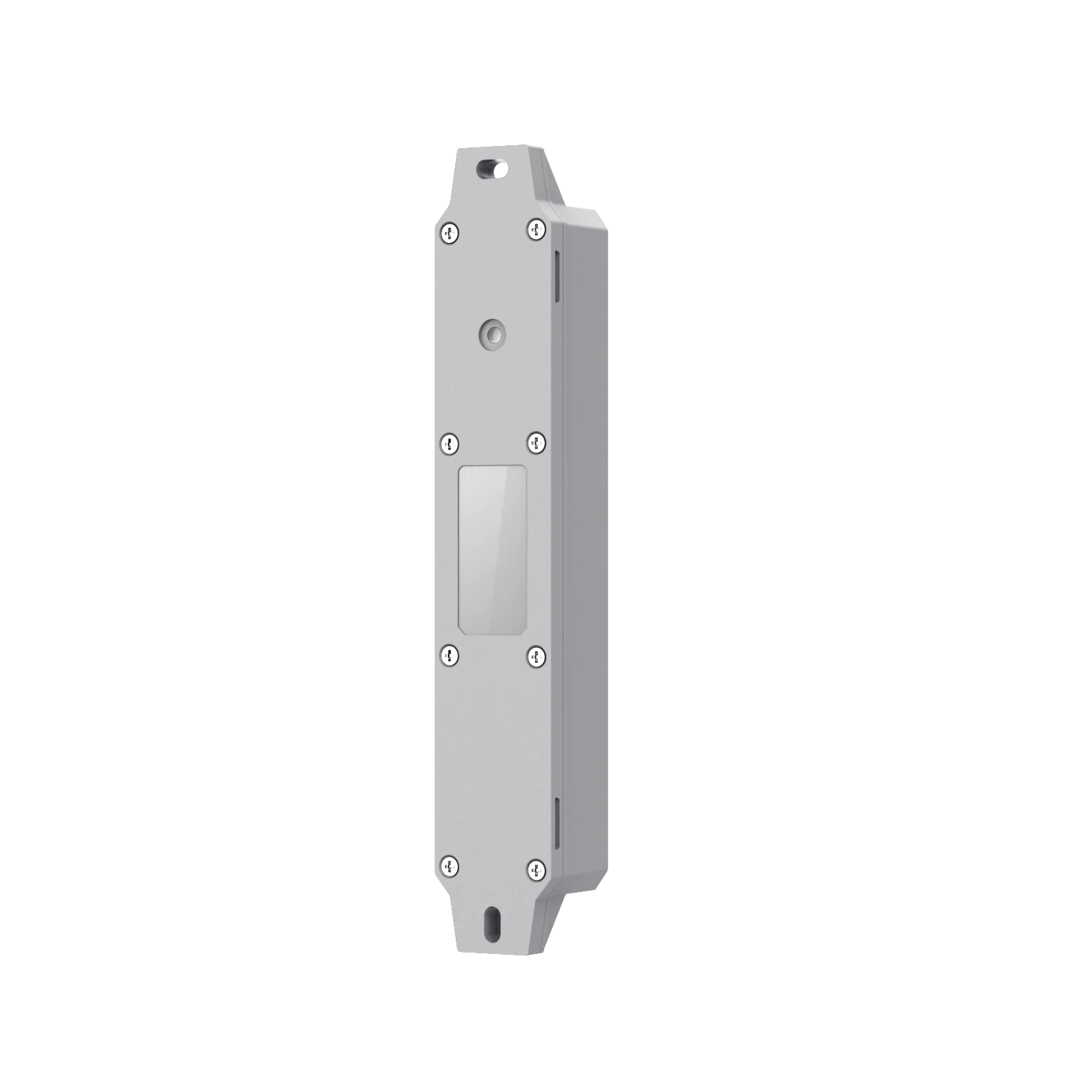

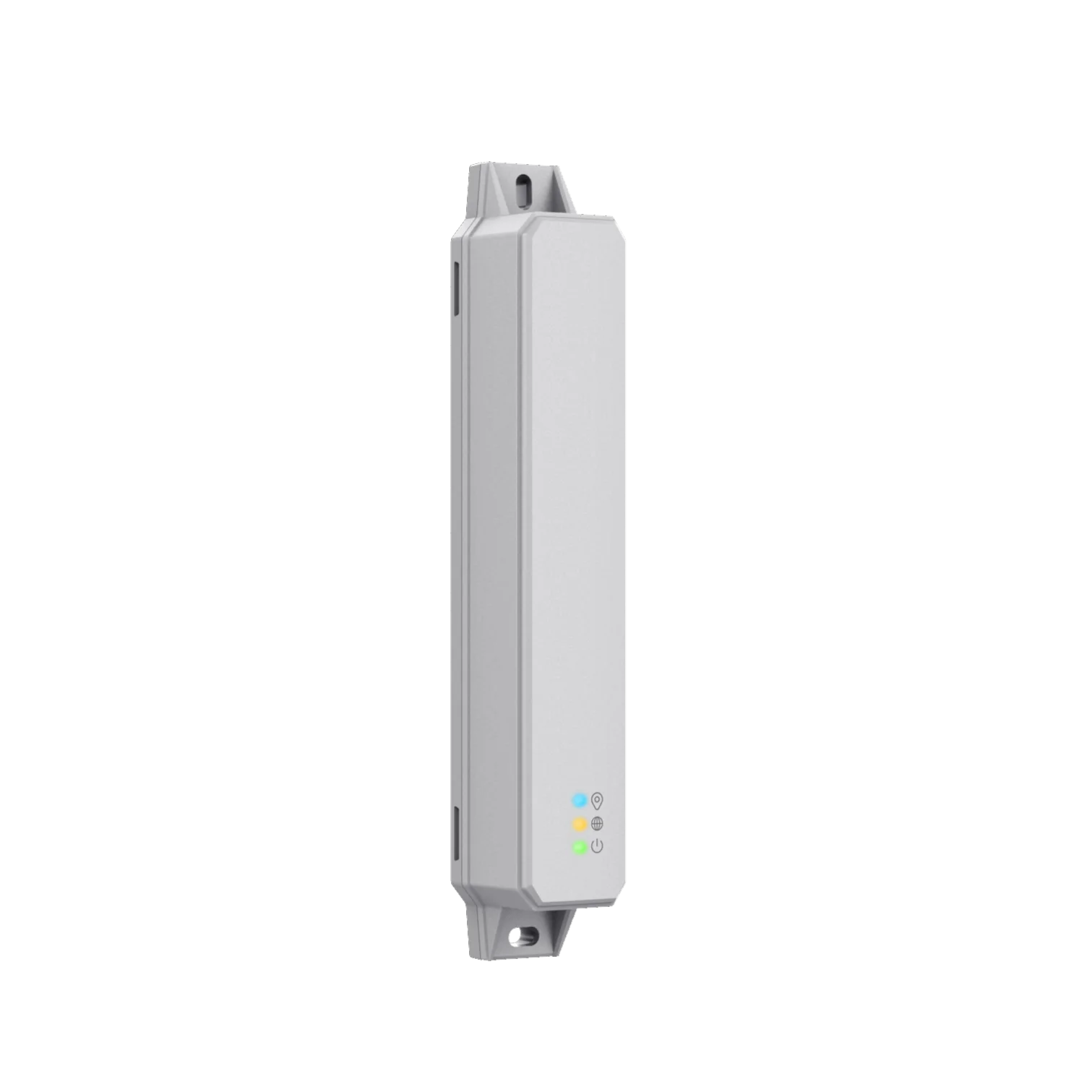

The LW012 Container Tracker is a long strip tracker engineered to revolutionize asset management and logistics operations. By combining LoRaWAN network transmission with Bluetooth and GPS fix technologies, it offers unparalleled flexibility and versatility in tracking containers across indoor warehouses, large distribution centers, and vast outdoor spaces. Also, the tracker supports multiple working modes, adapting to varied application scenarios. Its robust capabilities enables the LW012 to ensure real-time visibility of assets, thereby enabling businesses to optimize inventory control and streamline supply chain workflows.
Specification
| LoRa Protocol | LoRaWAN V1.0.3 |
| Lora Frequency | EU868/AU915/US915/AS923/IN865/KR920/RU864/AS923-1/AS923-2/AS923-3/AS923-4 |
| Tx Power | Max 22dBm |
| Sensitivity | -137dBm@SF12 |
| LoRa Communication Distance | Up to 7 km (in urban open space) |
| Bluetooth® (BLE) | V4.2 |
| TX Power | Max 4 dBm |
| BLE Broadcast Distance | Up to 50m in free space |
| BLE Scan Distance (1M PHY) | Up to 150m in free space |
| Power Supply | 8000 mAh replaceable battery |
| Protection level | IP67 |
| Dimension | 199mm×33.5mm×33mm |
| Weight | 194.8g |
| Power Switch | Power button |
| Operation Temperature/ Storage Temperature | -30℃ ~ 70℃ |
| Operation Humidity | 10%~90% |
