IoT Modules

Showing all 8 results

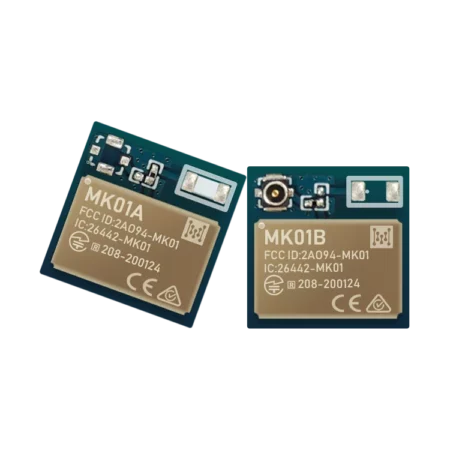

MK01
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52832 SoC solution
- Bluetooth 5 (2Mbps CSA#2 Advertising Extensions)
- 512kB Flash and 64kB RAM
- Wide supply voltage range: 1.7 V to 3.6 V
- Full set of digital interfaces including SPI/2-wire/I²S/UART/PDM/QDEC
- NFC-A Tag
- Dimension: 10.0×10.0×2.0mm (with shield)
- 22 GPIOs
- Antenna (MK01A – Ceramic chip antenna MK01B – u.FL connector)
$8.00 Select options Add Me
MK02
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52832 SoC solution
- Bluetooth 5（2 Mbps / CSA #2 / Advertising Extensions）
- 64 MHz ARM® Cortex-M4F CPU
- 512kB Flash and 64kB RAM
- 1.7 V to 3.6 V
- UART/SPI/ TWI/ PDM/I²S/PWM/ADC
- NFC-A Tag
- 21 x 13.8 x 2.3mm (with shield)
- 30 GPIOs
- Antenna(MK02D – PCB antenna / MK02E – u.FL connector）
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, Bluetooth® mesh, ANT+ and 2.4GHz ultra-low power wireless applications.
$6.50 Select options Add Me
MK05
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52810 SoC solution
- Bluetooth 5 (2 Mbps/CSA #2)
- 64 MHz ARM® Cortex-M4F CPU
- 192kB Flash and 24kB RAM
- 1.7 V to 3.6 V
- UART/SPI/TWI/PDM/PWM/ADC
- 21 x 13.8 x 2.3mm (with shield)
- 30 GPIOs
- Antenna (MK05A – PCB antenna / MK05B – u.FL connector)
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+ and 2.4GHz ultra-low power wireless applications.
$5.00 Select options Add Me

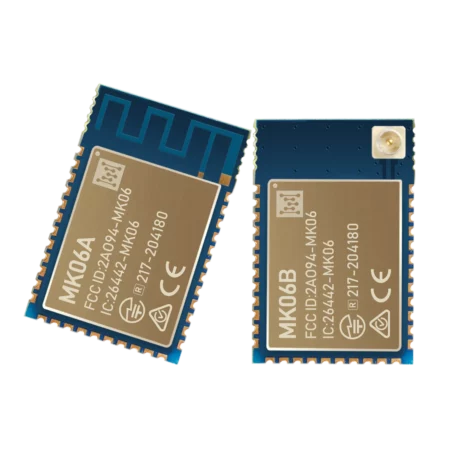

MK06
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52811 SoC solution
- Bluetooth 5 (Direction Finding/2 Mbps/CSA #2/Advertising Extensions/Long Range)
- 64 MHz ARM® Cortex-M4F CPU
- 192kB Flash and 24kB RAM
- 1.7 V to 3.6 V
- UART/SPI/TWI/PDM/PWM/ADC
- 21 x 13.8 x 2.3mm (with shield)
- 30 GPIOs
- Antenna (MK06A – PCB antenna / MK06B – u.FL connector)
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (IEEE 802.15.4) ultra low-power wireless applications.
$6.50 Select options Add Me

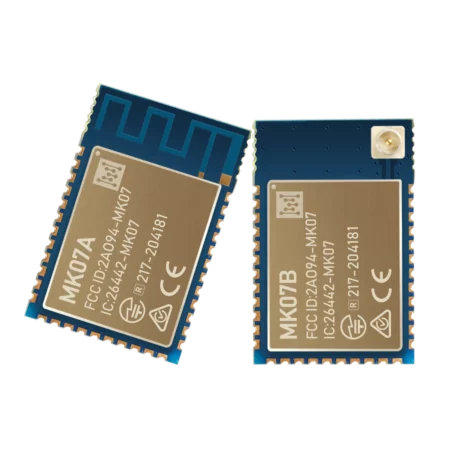

MK07
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52833 SoC solution
- Bluetooth (Direction Finding/2 Mbps/CSA #2/Advertising Extensions/Long Range)
- 64 MHz ARM® Cortex-M4F CPU
- 512kB Flash and 128kB RAM
- 1.7 V to 5.5 V
- UART/SPI/TWI/PDM/PWM/ADC
- 21 x 13.8 x 2.3mm (with shield)
- 42 GPIOs
- Antenna (MK07A – PCB antenna / MK07B – u.FL connector)
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (IEEE 802.15.4) ultra-low power wireless applications.
$8.00 Select options Add Me

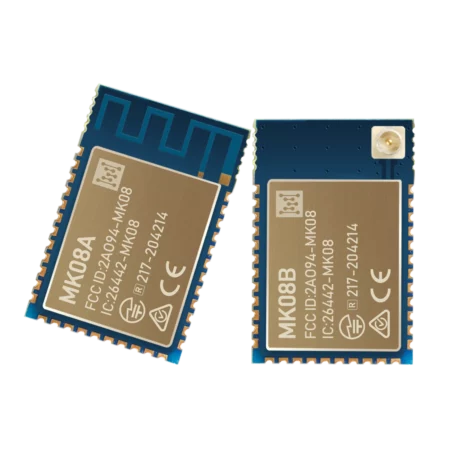

MK08
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52840 SoC solution
- Bluetooth (2 Mbps, CSA #2, Advertising Extensions, Long Range)
- 64 MHz ARM® Cortex-M4F CPU
- 1MB Flash and 256kB RAM
- 1.7 V to 5.5 V
- UART, SPI, TWI,PDM,PWM,ADC
- 21 x 13.8 x 2.3mm (with shield)
- 46 GPIOs
- Antenna (MK08A – PCB antenna, MK08B – u.FL connector)
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (IEEE 802.15.4) ultra-low power wireless applications.
$8.00 Select options Add Me

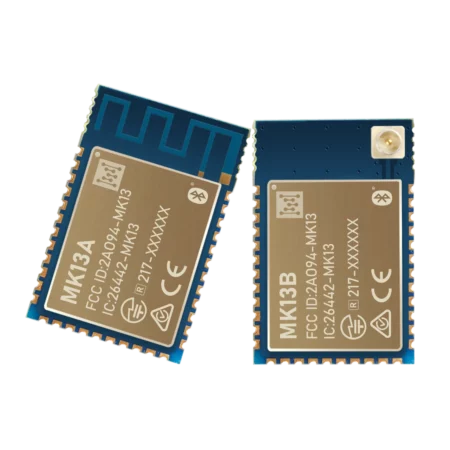

MK13
Bluetooth Modules
Features:
- 512kB+64kB RAM and 1MB+256KB Flash Memory
- Dual-core Arm® Cortex®-M33
- Nordic® Semiconductor nRF5340 SoC Solution
- A highly flexible multiprotocol SoC that is best suited for ANT+, BLE, Thread (802.15.4) ultra-low-power wireless applications, and Zigbee
- Functions at a wide extendable range of operating temperature
- Has enough memory to support light to intense tasks
- Supports multiple forms of Bluetooth connectivity
- Functions through the Nordic Semiconductor nRF5340 dual-core Bluetooth 5.2 SoC
$12.00 Select options Add Me

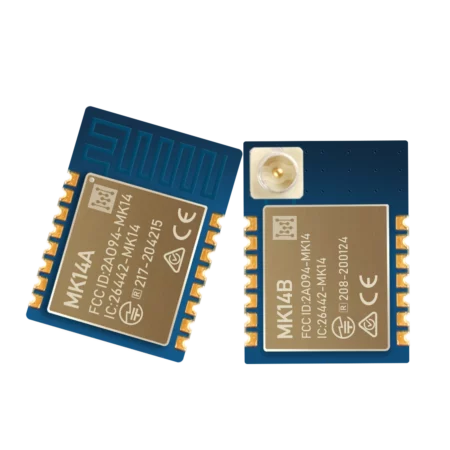

MK14
Bluetooth Modules
Features:
- Nordic® Semiconductor nRF52805 SoC solution
- Bluetooth 5 (2 Mbps, CSA #2)
- 64 MHz ARM® Cortex-M4F CPU
- 192kB Flash and 24kB RAM
- 1.7 V to 3.6 V
- UART, SPI, TWI, ADC
- 12.1 x 8.9 x 2.0mm (with shield)
- 8 GPIOs
- Antenna (MK14A – PCB antenna, MK14B – u.FL connector)
- Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+ and 2.4GHz ultra-low power wireless applications
$4.50 Select options Add Me
