Description

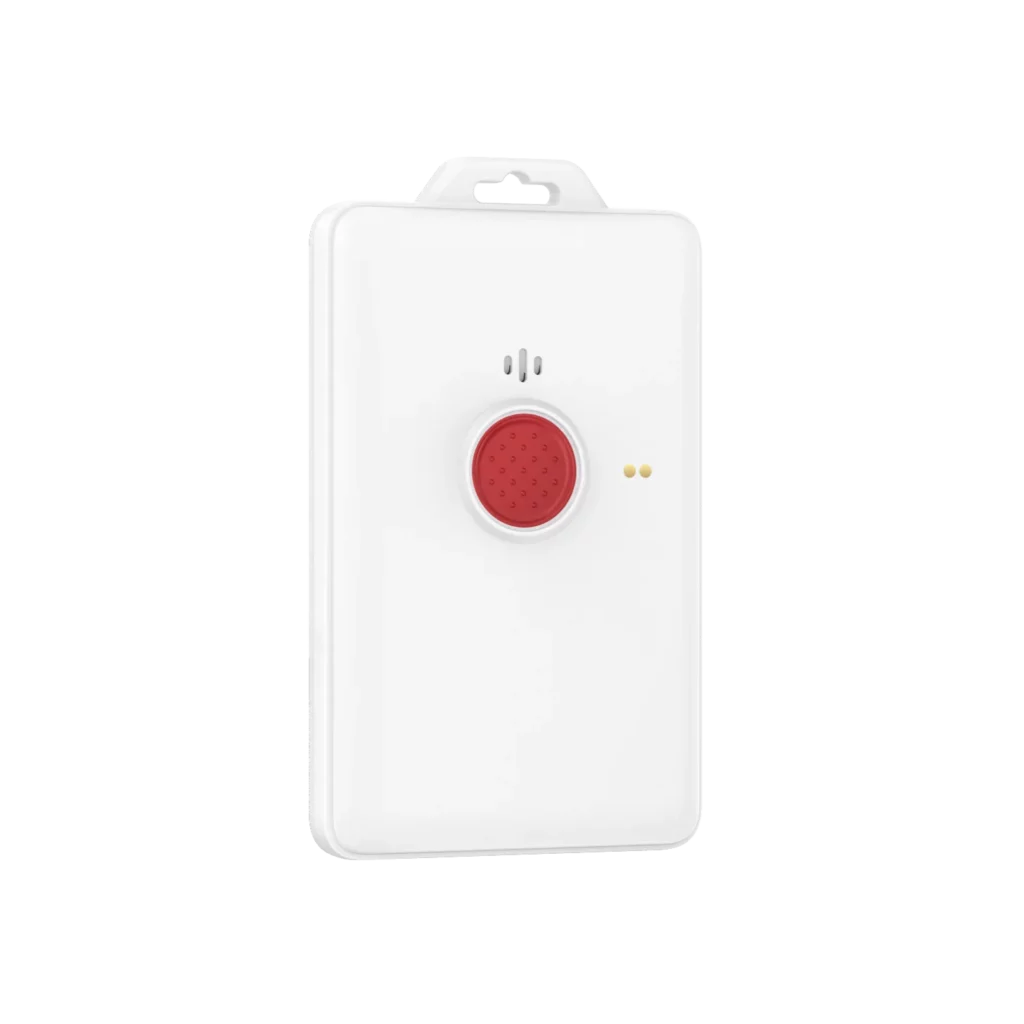

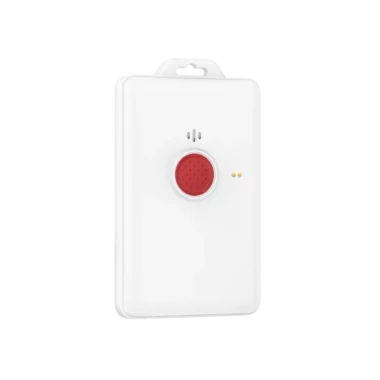

The PS101-M is a smart badge that combines Cellular network transmission with BLE, WIFI, and GPS positioning technologies. This combination allows for reliable indoor and outdoor positioning, making it ideal for ensuring staff safety, emergency alarm capabilities, and effective personnel management.
Specification
| Cat-M1 Band | B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19,B20, B25, B26, B28, B66 |
| Cat-NB1/NB2 Band | B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20,B25, B26, B28, B66 |
| SIM | Compatible with Sim card |
| Forwarding Protocol | MQTT (compatible with HEX and JSON) |
| Bluetooth | V5.0 |
| TX Power | Max 8 dBm |
| Dimension | 96.5*61.6*10mm / 103.3*68.4*11.8mm(Includes lugs） |
| Weight | 70g |
| Power Supply | 1500mAh Rechargeable battery |
| Operating Temperature | -20 ~ + 60℃ |
| Operating Humidity | 0~95% (No condensation) |
| IP Rating | IP67 |
| Alarm status indication | Vibration/buzzer/ LED indicator |
| Certification | CE/FCC/Reach/RoHS |
| Other | ATEX certified version optional |
